GYTA optical cable nrog xim kab txaij muaj ib hom lossis multimode optical fibers uas muaj kev tiv thaiv los ntawm cov hlab ntsha xoob. Cov raj xoob yog ua los ntawm cov yas modulus siab thiab muaj cov khoom sib txuas los tiv thaiv cov fibers optical. Cov raj xoob (thiab muab tub lim) tau tso tseg nyob ib puag ncig ntawm tib lub zog hauv nruab nrab ntawm lub cev los ua ib qho kev sib cog lus thiab lub voj voog cable, thiab qhov sib txawv ntawm cov tub ntxhais cable yog tag nrho cov dej thaiv cov khoom siv. Polyethylene sheath nrog cov xim kab txaij yog extruded tom qab longitudinal wrapping ntawm aluminium-yas composite daim kab xev uas muab cov cuab yeej cable ntawm ya raws.
Yam khoom:GYTA nrog cov kab txaij xim
Daim ntawv thov:Lub cev kab thiab lub hauv paus cheeb tsam network
Khoom piav qhia:

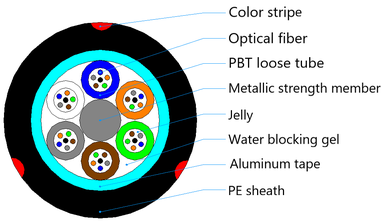

Optical fiber, xoob raj tsim, nws yog xim hlau central lub zog tus tswv cuab, SZ stranded core ntim nrog gel, txhuas daim kab xev sib txuas PE txheej sheath nrog xim kab txaij.
Laying hom:Cov kav dej / Aerial
Ua haujlwm kub:-40 degree - ntxiv rau 70 degree
|
Cores |
Yam tsawg kawg bending radius (mm) |
Yam tsawg kawg nkaus tso cai tensile quab yuam (N) |
Yam tsawg kawg nkaus tso cai crush tsis kam (N / 100mm) | |||
|
zoo li qub |
dynamic |
luv luv |
mus ntev |
luv luv |
mus ntev |
|
|
2-864 |
10D |
20D |
1500 |
600 |
1000 |
300 |
Faj seeb: D txhais tau hais tias sab nraud txoj kab uas hla ntawm optical cable
1, Tsawg kis tau tus mob attenuation thiab dispersion.
2, tsim nyog tsim, meej tswj ntawm ntev fibers nyob rau hauv lub xoob raj thiab zoo cabling txheej txheem muab lub cable zoo heev txhua yam thiab ib puag ncig zog.
3, SZ-stranded, xoob raj tsim cais fibers los ntawm kev teeb tsa thiab ib puag ncig nruj.
4, Cov dej thaiv cov gel ntim cov qauv tsim muab cov kab hluav taws xob zoo tshaj plaws dej pov thawj kev ua haujlwm thiab kev tiv thaiv dej noo, nrog me me.
5, Zoo heev yooj thiab khoov kuj.
6, Aluminium ya raws barrier tiv thaiv kev nkag mus ntawm noo noo los yog tshuaj.
7, Xim kab txaij nyob rau sab nrauv pab txhim kho thiab kho cov kab.
Cim npe nrov: optical fiber cable gyta nrog xim kab txaij
