GYFTA (cov tswvcuab tsis yog xim hlau, cov hlua xoob xoob tso tseg nrog kev sau, sab nraum zoov kho qhov muag cable rau kev sib txuas lus muaj ib hom lossis multimode optical fibers uas muaj kev tiv thaiv los ntawm xoob hlab. Cov hlua xoob tau tso tseg nyob ib puag ncig cov neeg tsis yog xim hlau hauv nruab nrab lub zog los tsim ib qho kev sib cog lus thiab lub voj voog cable, thiab qhov sib txawv hauv cov tub ntxhais cable yog ntim nrog cov dej thaiv cov khoom siv.
Yam khoom:GYFTA nrog cov kab txaij xim
Daim ntawv thov:Lub cev kab thiab lub hauv paus cheeb tsam network
Khoom piav qhia:

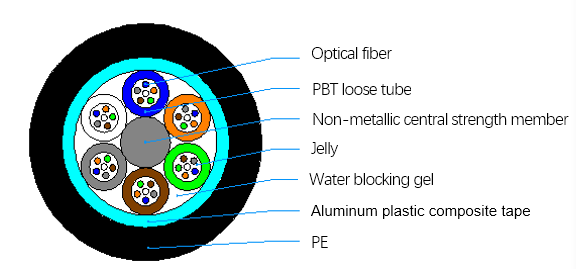

Optical fiber ntau, xoob raj tsim, non-metallic central lub zog tus tswv cuab, SZ stranded core ntim nrog gel, ob sab yas coated txhuas sawb polyethylene bonded sheath.
Laying hom:Cov kav dej / Aerial
Ua haujlwm kub:-40 degree -+70 degree
|
Cores |
Yam tsawg kawg bending radius (mm) |
Yam tsawg kawg nkaus tso cai tensile quab yuam (N) |
Yam tsawg kawg nkaus tso cai crush tsis kam (N / 100mm) | |||
|
zoo li qub |
dynamic |
luv luv |
mus ntev |
luv luv |
mus ntev |
|
|
2-864 |
10D |
20D |
1500 |
600 |
1000 |
300 |
Faj seeb: D txhais tau hais tias sab nraud txoj kab uas hla ntawm optical cable
1, Tsawg kis tau tus mob attenuation thiab dispersion.
2, tsim nyog tsim, meej tswj ntawm qhov ntev ntawm fibers nyob rau hauv lub xoob raj thiab optimum cabling txheej txheem muab cov cable zoo heev mechanical thiab ib puag ncig zog.
3, SZ-stranded, xoob raj tsim cais fibers los ntawm kev teeb tsa thiab ib puag ncig nruj.
4, Cov dej thaiv cov gel ntim cov qauv tsim muab cov kab hluav taws xob zoo tshaj plaws dej-pov thawj kev ua tau zoo thiab tiv thaiv ya raws.
5, Zoo heev yooj thiab khoov kuj.
6, Cov qauv tsis yog xim hlau muab lub teeb yuag cable, yooj yim installation thiab zoo heev electromagnetic tsis kam.
7,Aluminium strip longitudinally qhwv cable core kom zoo dua noo noo thaiv cov nyhuv ntawm optical cables.
