1 ~ 2 optical fiber yog ncaj qha sheathed nrog ib tug saj zawg zog txheej ntawm cov ntaub ntawv los tsim 900μm nruj buffered optical fiber. Cov tswv cuab muaj zog xws li aramid yarn yog nteg nyob ib ncig ntawm ib leeg lossis ob chav nruj-buffered optical fibers, muab cov khoom siv kho qhov muag muaj zog tensile khoom.Tom qab ntawd cov cable tiav nrog PVC sheath. Hom kab hluav taws xob kho qhov muag no yog lub teeb hauv qhov hnyav thiab nrog qhov me me thiab yooj yim heev, uas tuaj yeem ua tau raws li cov kev xav tau ntawm kev sib txuas thiab kev xa tawm sab hauv. Cov khoom siv hluav taws xob hluav taws xob siv hauv cov khoom siv kho qhov muag ua rau nws muaj kev nyab xeeb dua thaum ntsia hauv tsev.
Yam khoom:GJFJV
Daim ntawv thov: FTTH, kab tshwj xeeb, LAN
Khoom piav qhia:

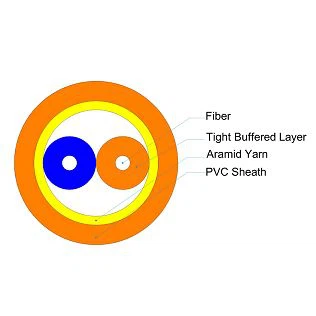

Tight buffered optical fiber, aramid xov paj, PVC sheath
Laying hom:Cov kav dej / choj / channel / phab ntsa-mounted
Ua haujlwm kub:-30 degree - ntxiv rau 70 degree
Cores | Yam tsawg kawg bending radius (mm) | Yam tsawg kawg nkaus tso cai tensile quab yuam (N) | Yam tsawg kawg nkaus tso cai crush kuj (N / 100 hli) | |||
zoo li qub | dynamic | luv luv | mus ntev | luv luv | mus ntev | |
1-2 | 10D | 20D | 1500 | 600 | 1000 | 300 |
Faj seeb: D txhais tau hais tias sab nraud txoj kab uas hla ntawm optical cable
1, Tsawg kis tau tus mob attenuation thiab dispersion.
2, tsim nyog tsim, zoo tshaj cabling txheej txheem muab cov cable zoo heev txhua yam thiab ib puag ncig zog.
3, Aramid yarn armouring ua kom cov tensile kev ua tau zoo thiab yooj yim ntawm cov khoom siv kho qhov muag.
4, Compact qauv cais cov fiber ntau optical los ntawm kev ntxhov siab nyob rau hauv ib puag ncig hnyav.
Cim npe nrov: 1-2 cores sab hauv kho qhov muag kab gjfj ua
