GYTC8S (hlau xaim xaim hlau, cov neeg siv lub zog hlau, cov raj xoob tso tseg nrog cov khoom sib txuas, sab nraum zoov kho qhov muag cable rau kev sib txuas lus nrog steel-polyethylene bonded sheath) optical cable muaj ib hom lossis ntau hom optical fibers uas muaj kev tiv thaiv los ntawm xoob hlab. Cov raj xoob yog ua los ntawm cov yas modulus siab thiab ntim nrog dej thaiv cov khoom sib xyaw. Cov hlua xoob (thiab muab tub lim) tau tso tseg nyob ib puag ncig ntawm cov hlau hauv nruab nrab lub zog cov tswv cuab los ua ib qho kev cog lus thiab lub voj voog cable, thiab qhov sib txawv ntawm cov tub ntxhais cable yog ntim nrog dej thaiv cov khoom siv. Rau qee qhov ntau thiab tsawg ntawm optical cable, lub hauv paus muaj zog cov tswv cuab yog them nrog ib txheej ntawm cushion. Polyethylene sheath yog extruded rau ntawm daim kab xev steel thiab xa xov hlau. Lub cev cable yog txhawb los ntawm cov xaim xaim xaim.
Yam khoom:GYTC8S
Daim ntawv thov: Lub cev kab thiab kev sib txuas lus hauv zos
Khoom piav qhia:

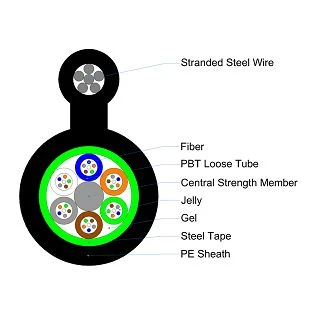

Optical fiber, xoob raj tsim, nws yog xim hlau central lub zog tus tswv cuab, SZ stranded core sau nrog gel, galvanized steel strand tub txib hlau, steel daim kab xev PE bonded txheej sheath.
Laying hom:Huab cua
Ua haujlwm kub:-40 degree - ntxiv rau 70 degree
Cores | Yam tsawg kawg bending radius (mm) | Yam tsawg kawg nkaus tso cai tensile quab yuam (N) | Yam tsawg kawg nkaus tso cai crush tsis kam (N / 100mm) | |||
zoo li qub | dynamic | luv luv | mus ntev | luv luv | mus ntev | |
2-864 | 10D | 20D | 3000 | 1000 | 1000 | 300 |
Faj seeb: D txhais tau hais tias sab nraud txoj kab uas hla ntawm optical cable
1, Tsawg kis tau tus mob attenuation thiab dispersion.
2, tsim nyog tsim, meej tswj ntawm ntev fibers nyob rau hauv lub xoob raj thiab zoo cabling txheej txheem muab lub cable zoo heev txhua yam thiab ib puag ncig zog.
3, Compact qauv thiab SZ-stranded xoob raj tsim cais fibers los ntawm ib puag ncig rigors.
4, Cov dej thaiv cov gel ntim cov qauv tsim muab cov kab hluav taws xob zoo heev tiv thaiv dej thiab dej pov thawj.
5, Tus kheej txhawb nqa cable muab lub zog tensile siab, haum rau nws tus kheej txhawb nqa huab cua.

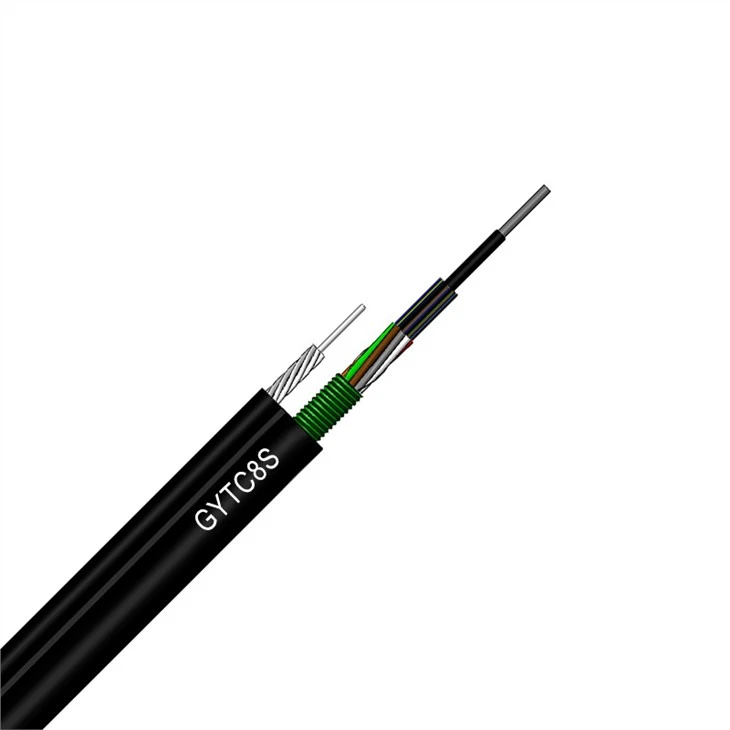

Cim npe nrov: fig. 8 tus kheej - txhawb nqa steel daim kab xev armor tso tseg laus cev kho qhov muag fiber ntau kab gyt8s ib
